Linear slot drainage—often referred to by the popular brand name ACO drains or ‘hexdrains’—is the structural standard for managing surface water on modern paved driveways. These discreet channels, featuring the recognizable hexagonal grid pattern or narrow continuous slots, are designed to catch sheeting water and move it linearly across the surface to a main outlet.
When they function correctly, they ensure your driveway stays dry and flood-free, even during heavy Fylde Coast downpours. However, when an ACO line blocks, the resulting linear flood can be swift and destructive, sending water rushing directly toward garage doors or the house’s sub-floor vents. Because of their continuous linear design, ACO systems require completely different diagnostic and clearance procedures than the simple single-point yard gully a standard plumber is used to handling.
Is Your ACO Line Blocked? The Linear Symptoms
A blocked ACO drain doesn’t just drain slowly; it causes a dynamic structural failure. Look for these specific warning signs:
- Linear Pooling: Water sheeting along the entire 10-metre channel instead of entering the slots.
- Sub-Surface Silt Buildup: Visible sand or grit packing tight just beneath the top grating.
- garage Flooding: Water breaching the ACO threshold and pooling against your garage door seals.
The Unique Silt Buildup of the Fylde Coast
The primary reason properties from Lytham St Annes to Blackpool experience repeated failures of their aco hexdrain lines isn’t traditional clogs. The culprit is Silt and Sand Ingress.
Our coastal sub-base soils are naturally sandy. Ground movement, strong winds, and heavy rainfall pull fine sand particles across paved surfaces. While a standard round yard gully has a deep ‘pot’ specifically designed to trap this silt for manual scoop-out, the shallow, linear channel of an ACO drain doesn’t have this capacity. Instead, the sand settles horizontally along the entire floor of the 10, 15, or 20-metre run, compressing under the weight of water until it forms an impenetrable dam that seals the diameter of the line.
| Drain Feature | Traditional Yard Gully | ACO Linear Drain |
|---|---|---|
| Structure | Single point, deep pot, round grate. | Continuous linear channel, shallow, hexagonal ‘hexdrain’ grid or continuous slot. |
| Primary Trap | Deep Silt Pot (designed for manual clearance). | Linear Channel Floor (silt settles horizontally across the full run). |
| Unblocking Method | Standard plunging or single-point ‘jetting pot’ flush. | Specialized ‘Linear Sump Jetting’ and sequential linear flushing. |
Why Standard Plunging Fails on linear Drainage
If you have spent hours trying to plunge your driveway channel to no avail, you are not alone. Plungers work on displacement pressure—they use a column of water to push against a single-point blockage. But because an ACO drain is a continuous linear vent open along its entire top grating, plunging is useless; there is no pressurized water column to move because the force immediately escapes through the adjacent slots. The same applies to pouring unblockers into the channel—it will simply spread horizontally without tackling the deep-packed sand dam.

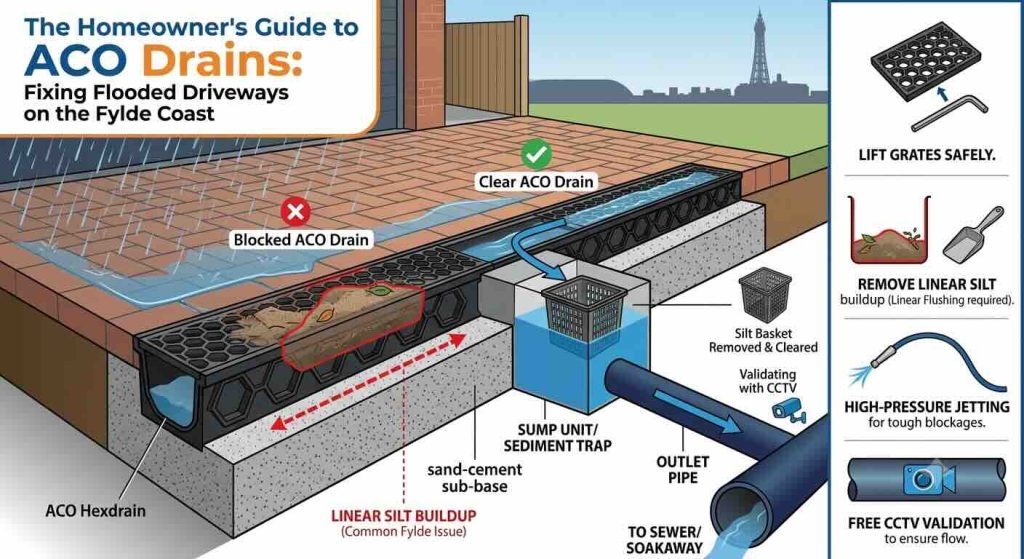

The Specialist Solution: Linear Sump Jetting
To clear an ACO driveway line, professional drainage engineers must use high-pressure water jetting, but with a linear-specific nozzle configuration. This method is called Linear Sump Jetting.
Instead of hitting a blockage head-on, our engineers systematically feed self-propelling jetting hoses down the line, pulling all the horizontal silt buildup backward through the system into a main collection sump. From there, we manually scoop or vacuum out the heavy compacted sand dam, fully restoring the linear capacity.
This heavy-duty clearance should always be followed up with a detailed CCTV drain survey in Blackpool. It is critical to verify that structural ground movement hasn’t caused the fragile ‘hex’ channel sections to sink, sag, or shift their joints—which would cause sand to ingress immediately back into the line.
Is Your Driveway Flooding? Fix Your ACO Drains Today.
Don’t allow a linear flood to breach your garage door or compromise your property’s brickwork during the next Fylde Coast storm. At Drainage Experts, we specialize in advanced diagnostic diagnostics and specialized linear clearance techniques for **aco hexdrain** and driveway channel systems.
Our engineering teams use specialized linear flushing nozzles to completely evacuate compacted coastal silt from your channels. Every diagnostic clearance service across Blackpool and the Fylde includes a definitive structural drain clearance in Blackpool and validation check to ensure your subterranean lines are pristine clean and free-flowing.
